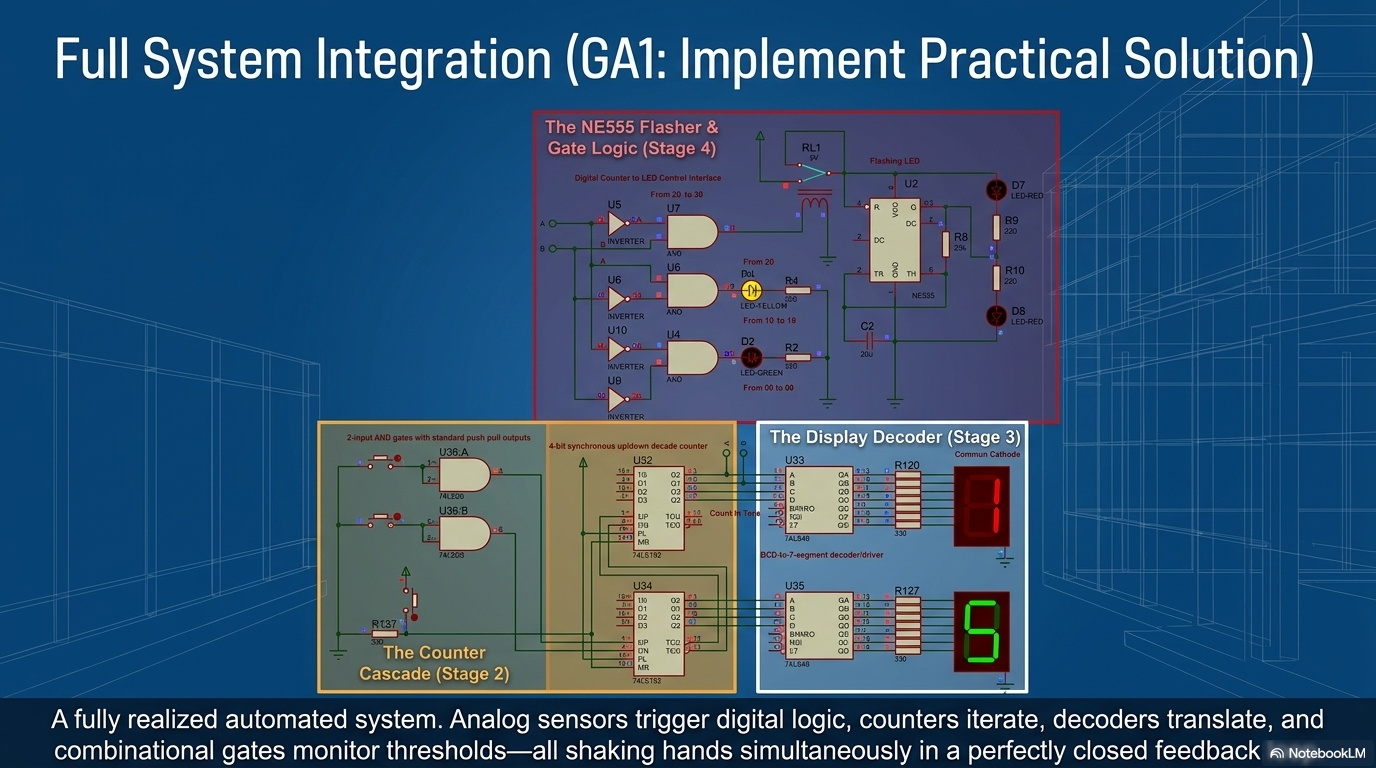

A parkade counter built from discrete stages.

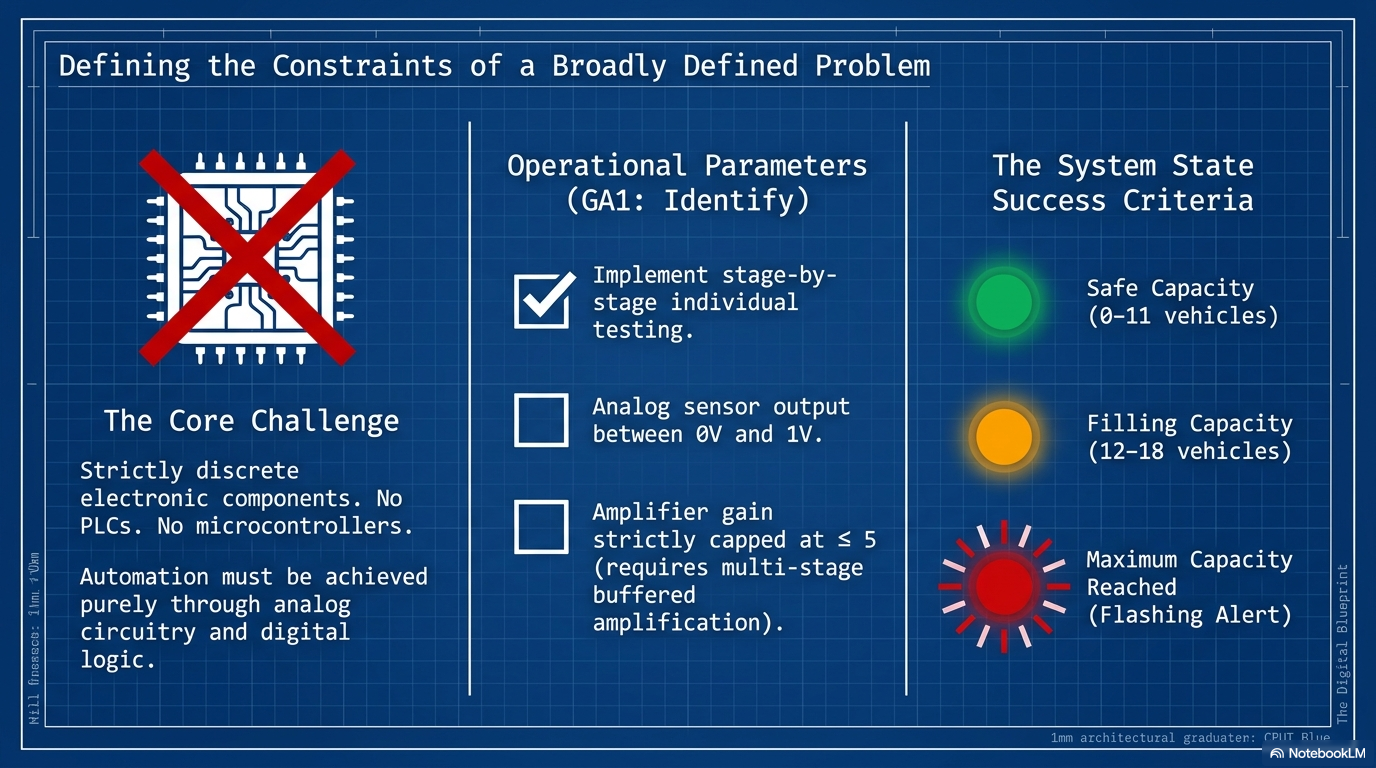

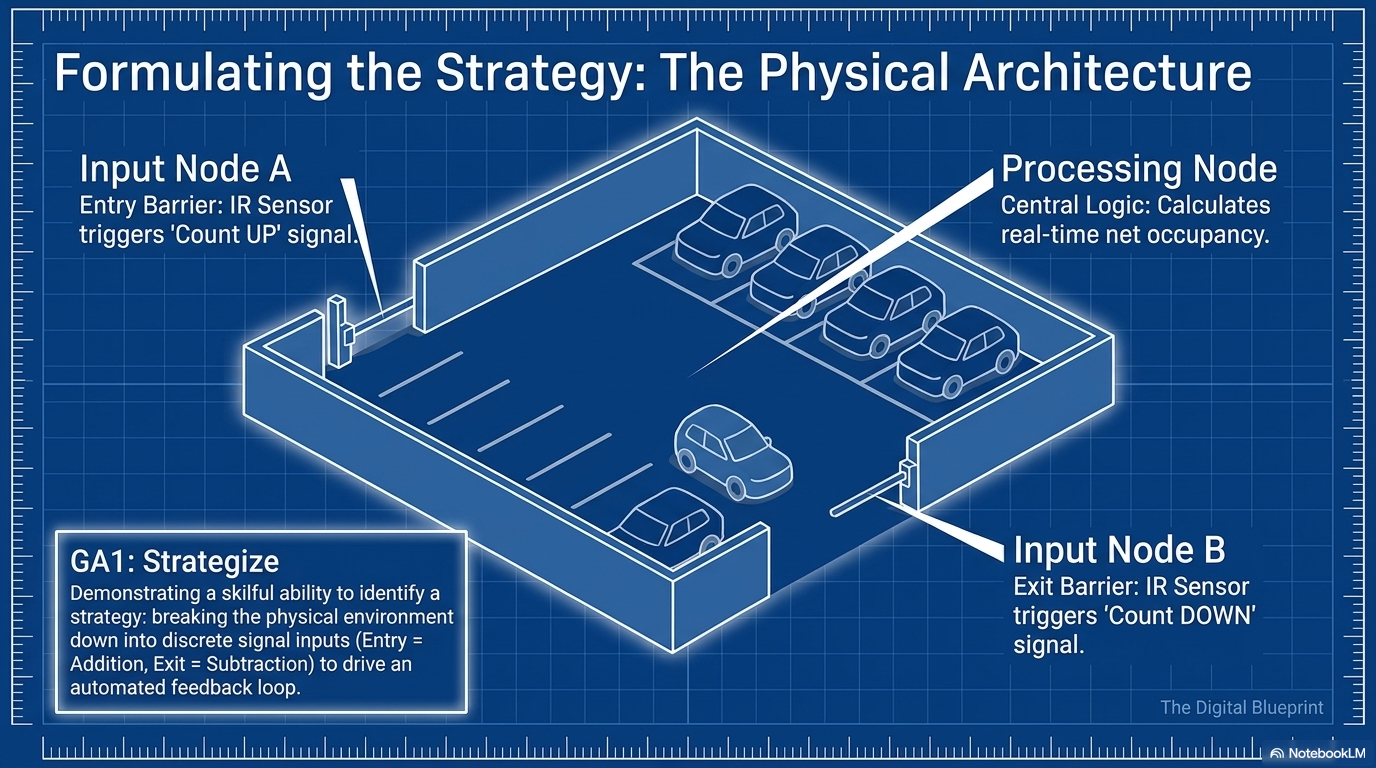

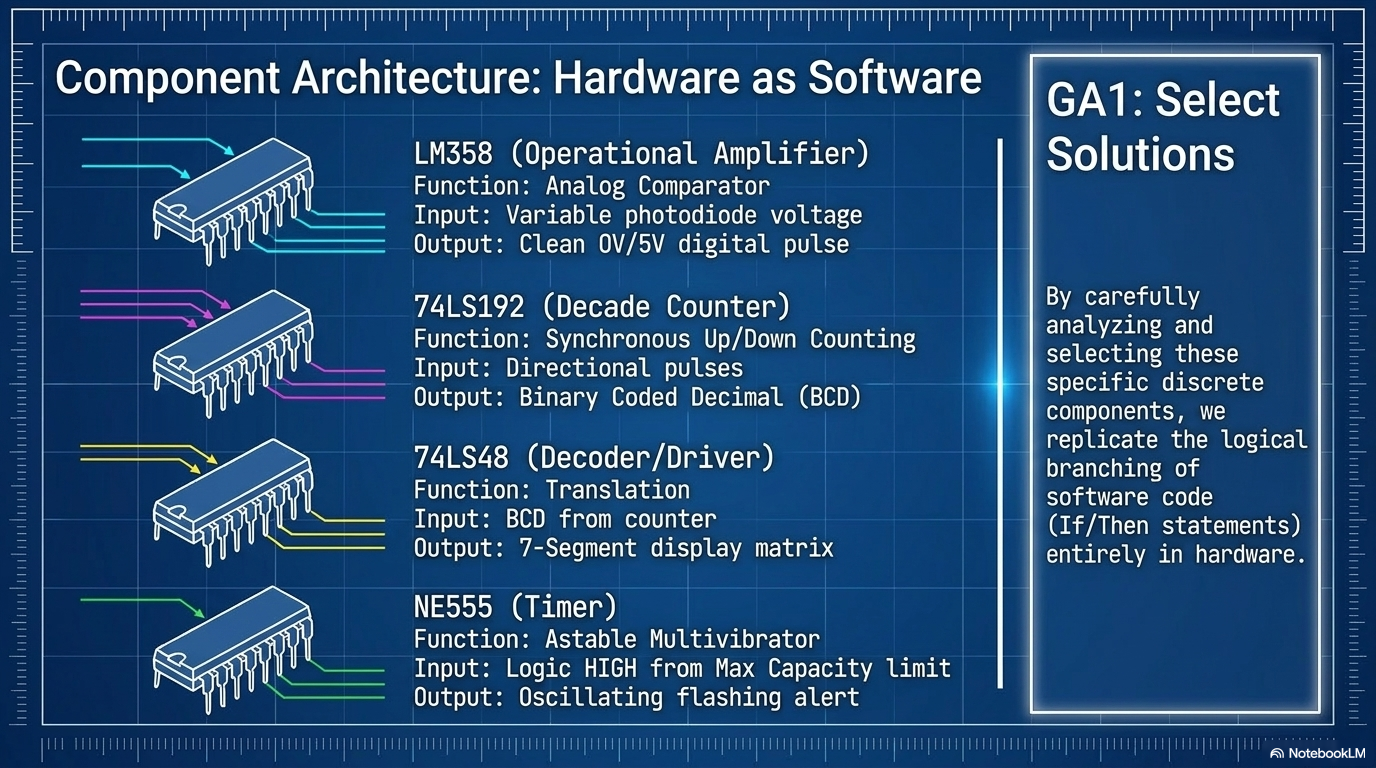

The generated anatomy material clarifies the project as a discrete parkade automation circuit: IR sensor pairs identify entry and exit movement, conditioning stages shape those signals into count pulses, counters track the current vehicle total, and the output stage drives display and alert indicators.

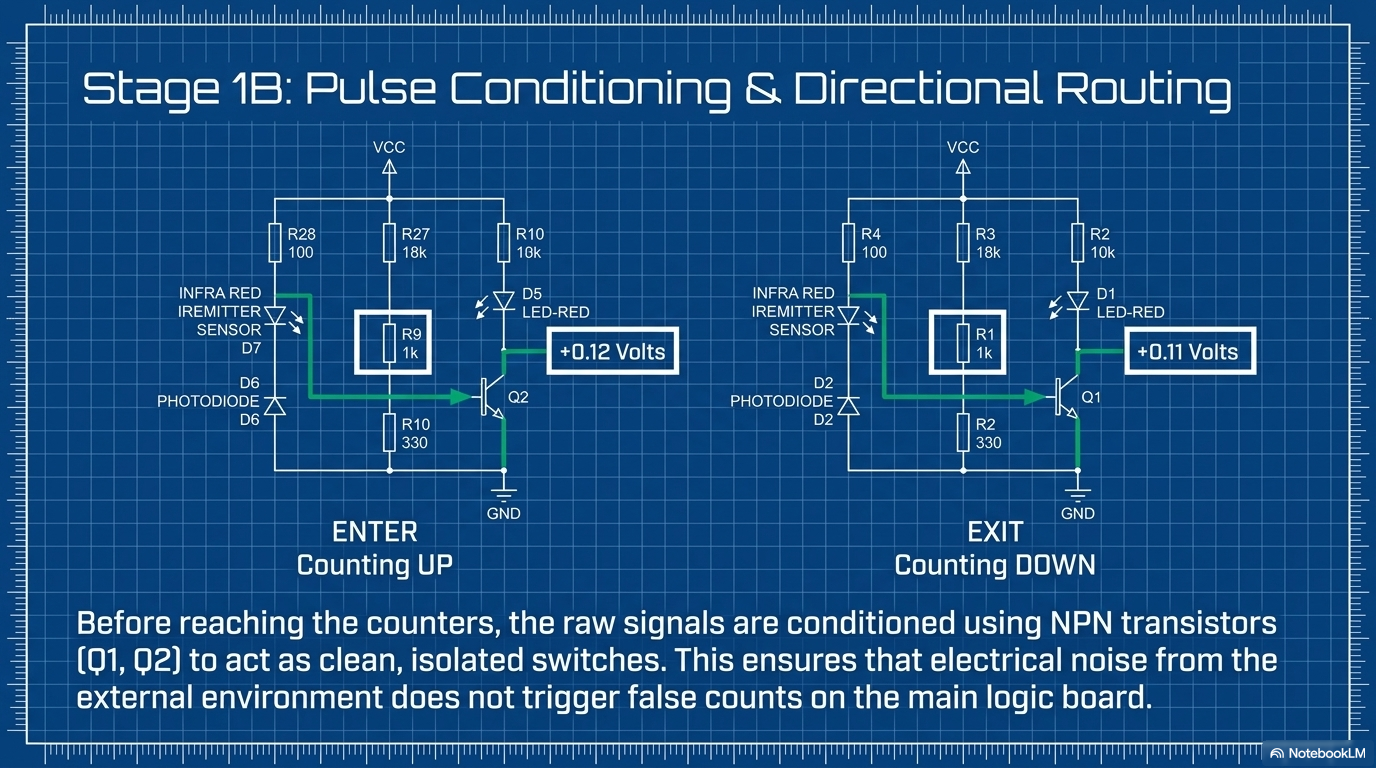

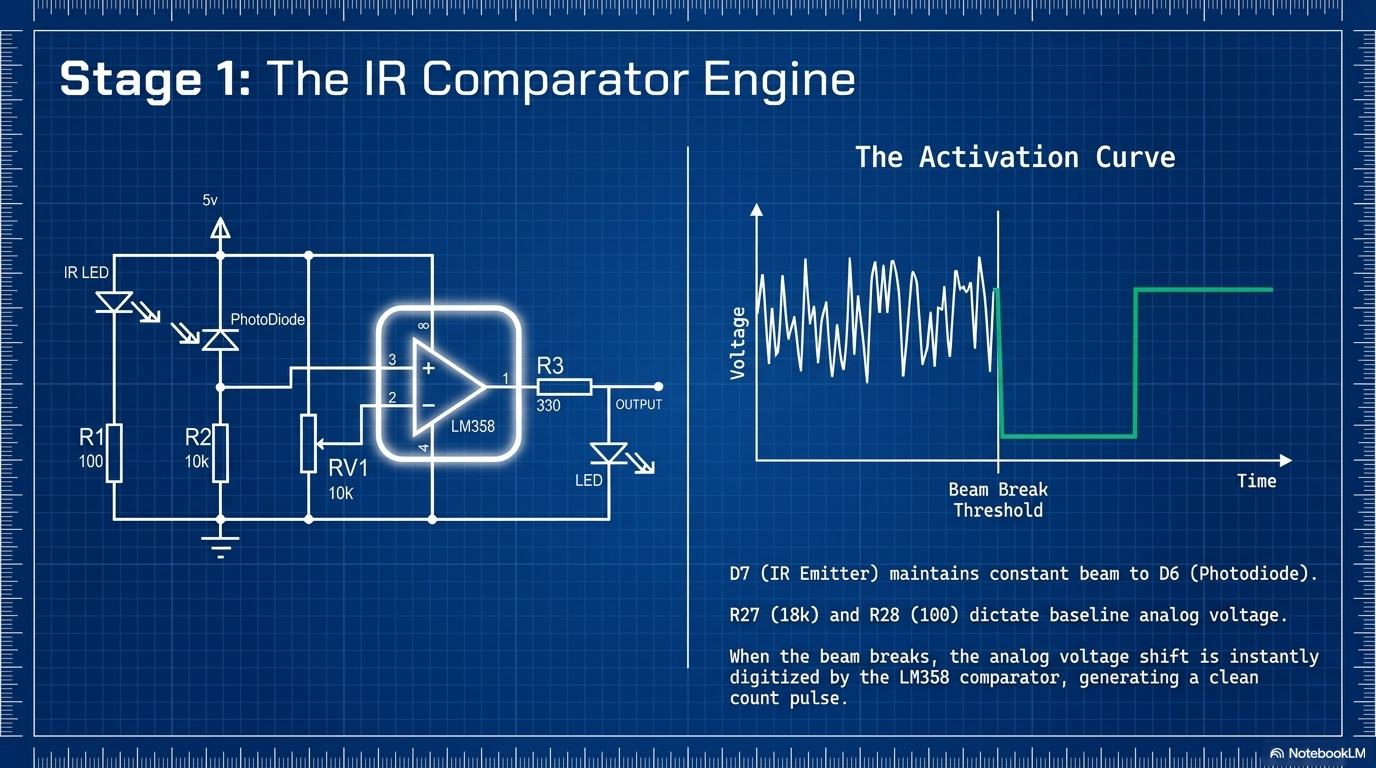

Dual IR direction sensing

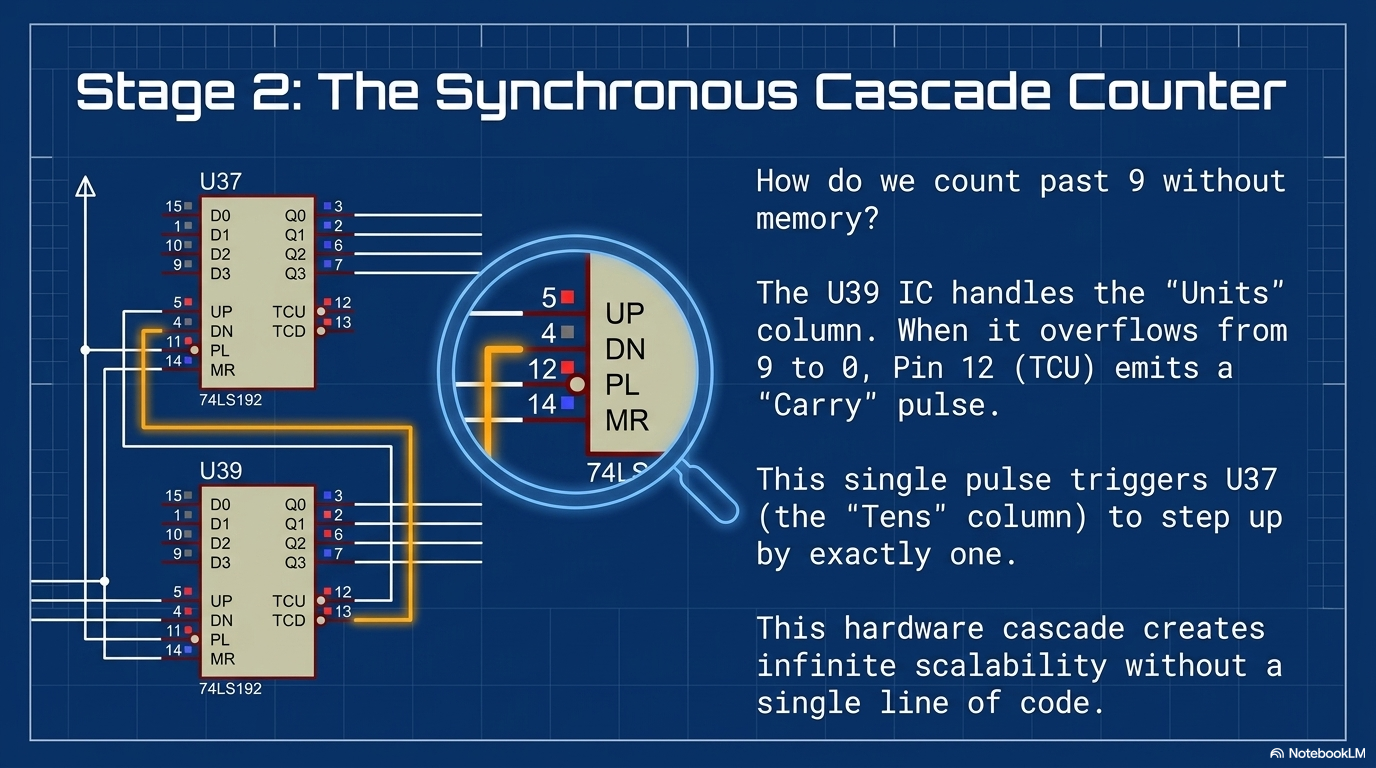

74LS192 decade counting

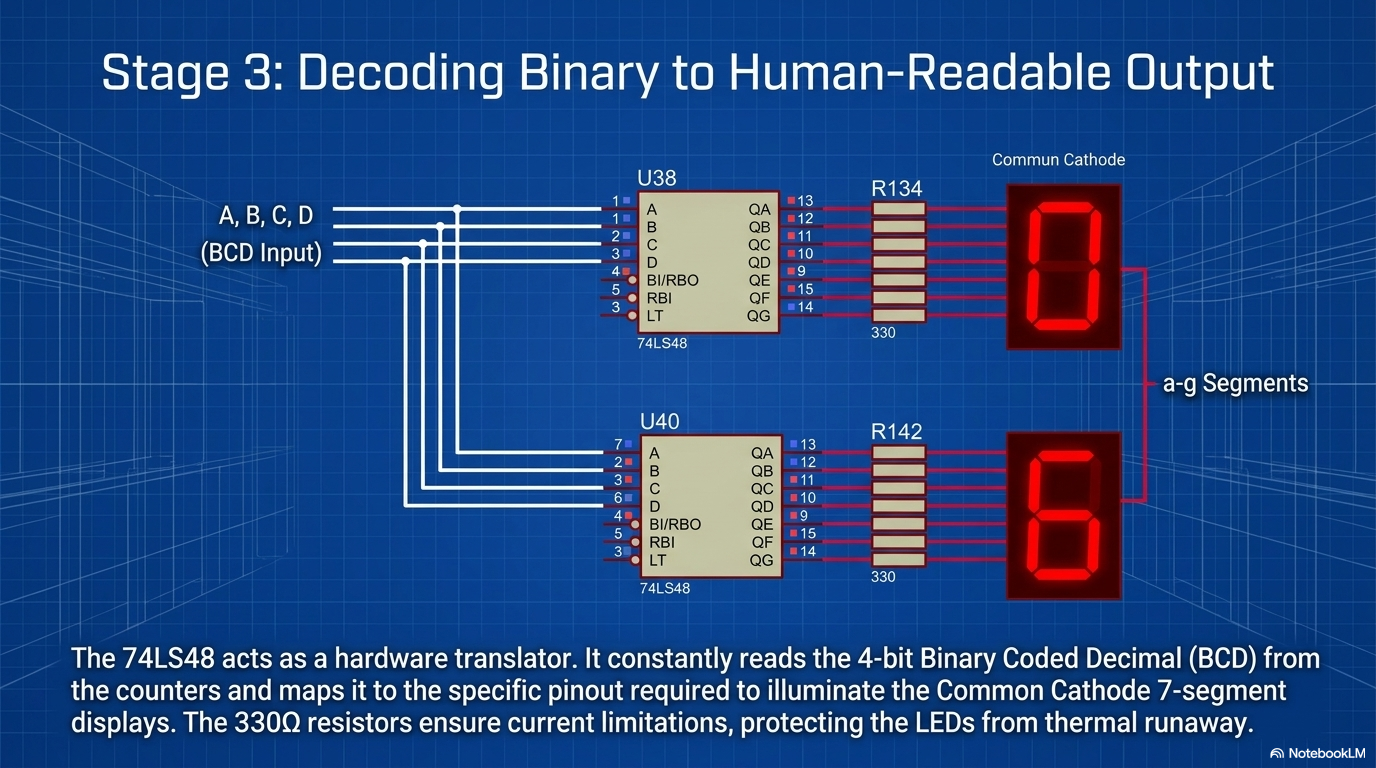

BCD-to-7-segment display path

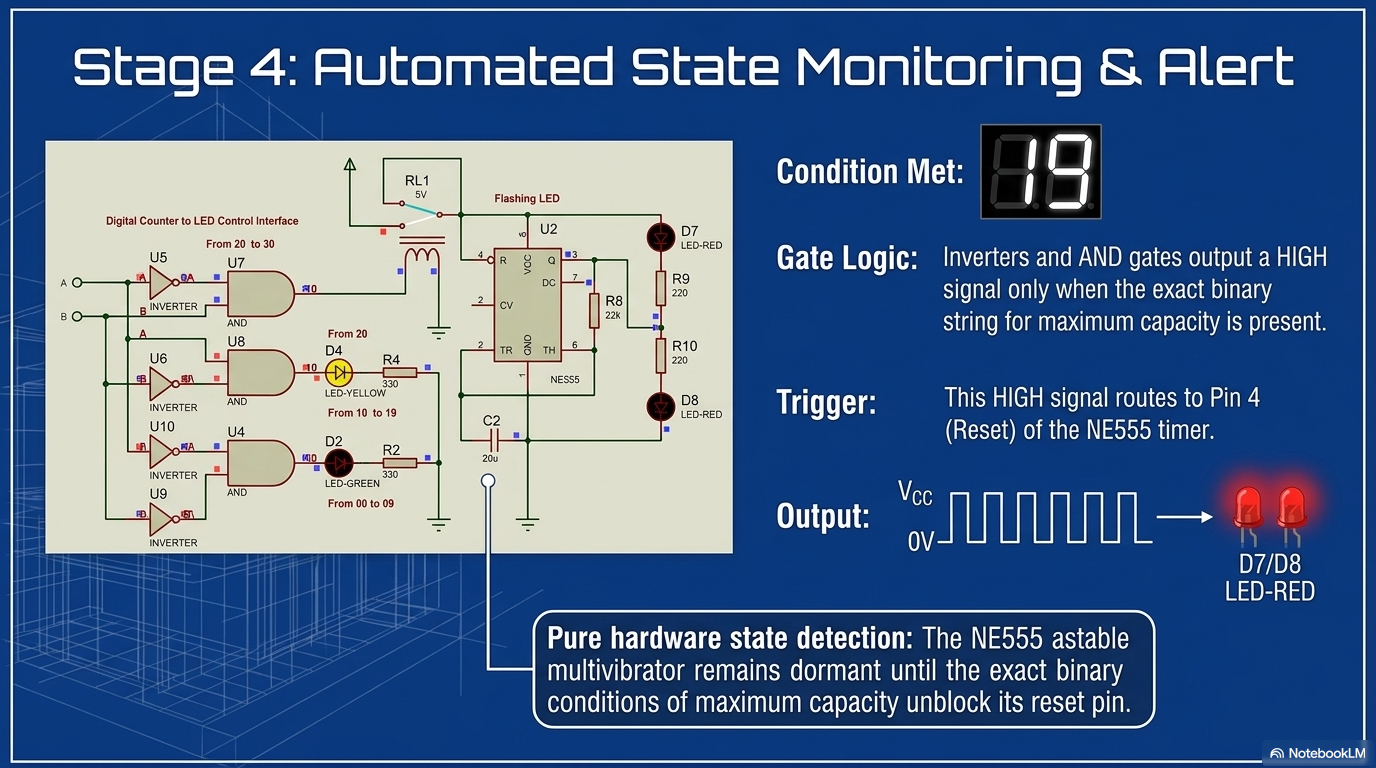

NE555 red alert timing
NotebookLM presentation
Visible PowerPoint slide deck
NotebookLM explanation
Video walkthrough
Watch the uploaded explanation video alongside the slide deck for a narrated overview of the parkade IR project.
Open on YouTubeNotebookLM website
Additional website walkthrough
Play the uploaded website video to see the extra NotebookLM-created web resource connected to this project.
Open on YouTubeDossier trail
How the evidence is organized
Counting checkpoints
Review the staged Proteus files that shape pulses and feed the up/down counting logic.
Display and alerts
Use the exported views to inspect the seven-segment display path and visual status indicators.
Final handoff
Open the complete PDS project in Proteus and keep the PDF, PPTX, and supporting documents nearby for verification.
Project library
View, download, and inspect files
Proteus source
Complete simulation
The final integrated project file for Proteus 8, with the supporting project files listed below.
NotebookLM visual
System anatomy diagram

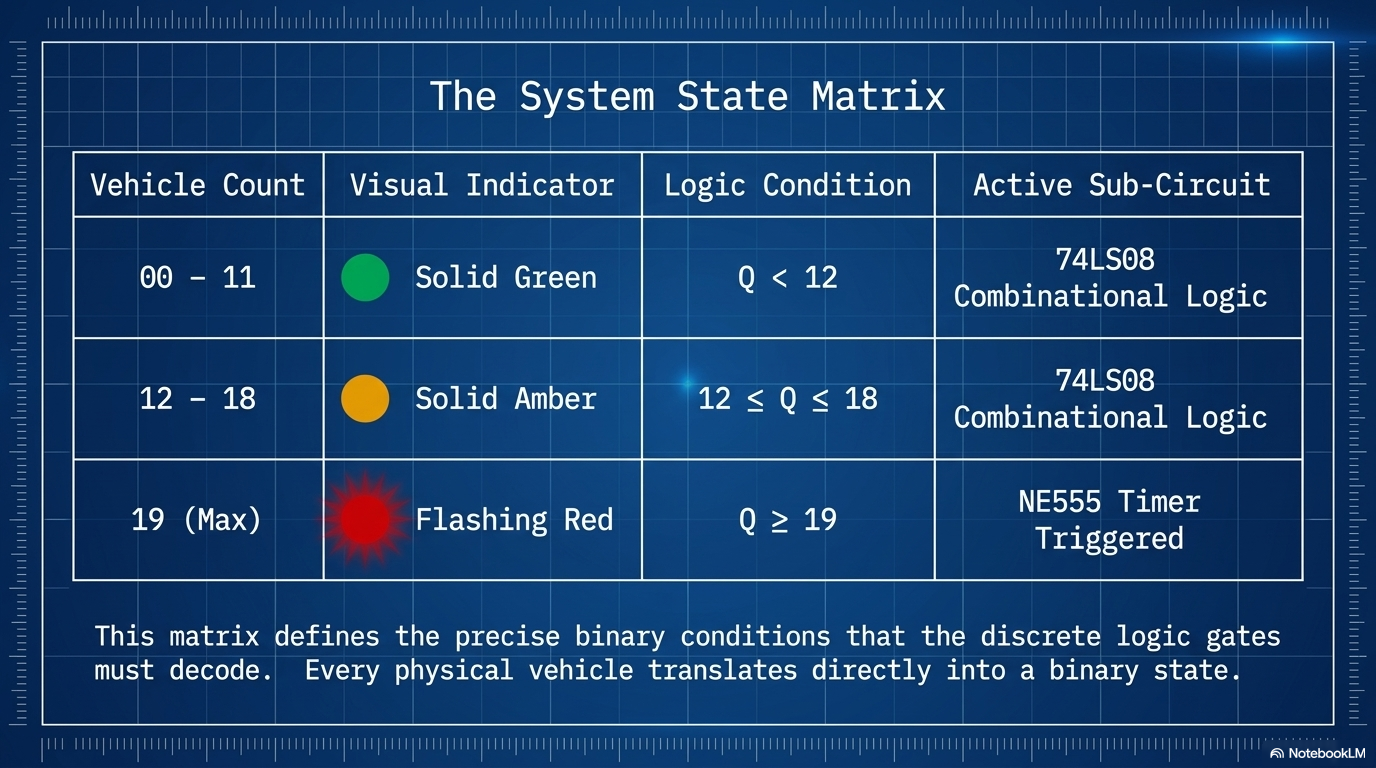

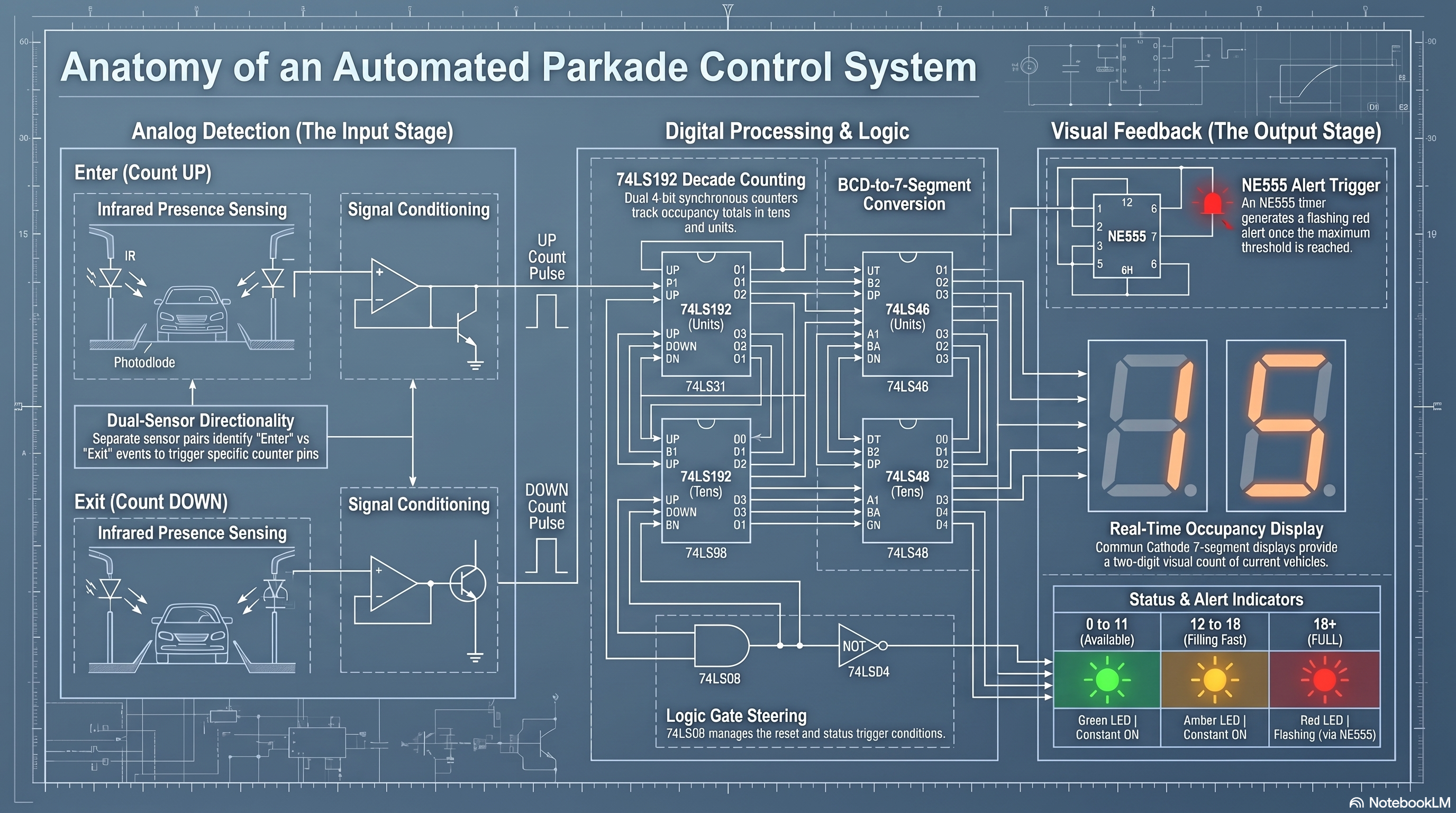

Generated overview showing the input, counting, display, and alert stages.
NotebookLM PDF
Discrete Parkade Automation
Preview the NotebookLM-generated PDF presentation directly in the site.
NotebookLM slides
Presentation deck
Visible slide deck extracted from the NotebookLM PowerPoint and optimized for the hosted site.
Assignment brief
The original project brief supplied with the control-system assignment.
Proteus source
Complete simulation
The final integrated project file for Proteus 8.
Block diagram

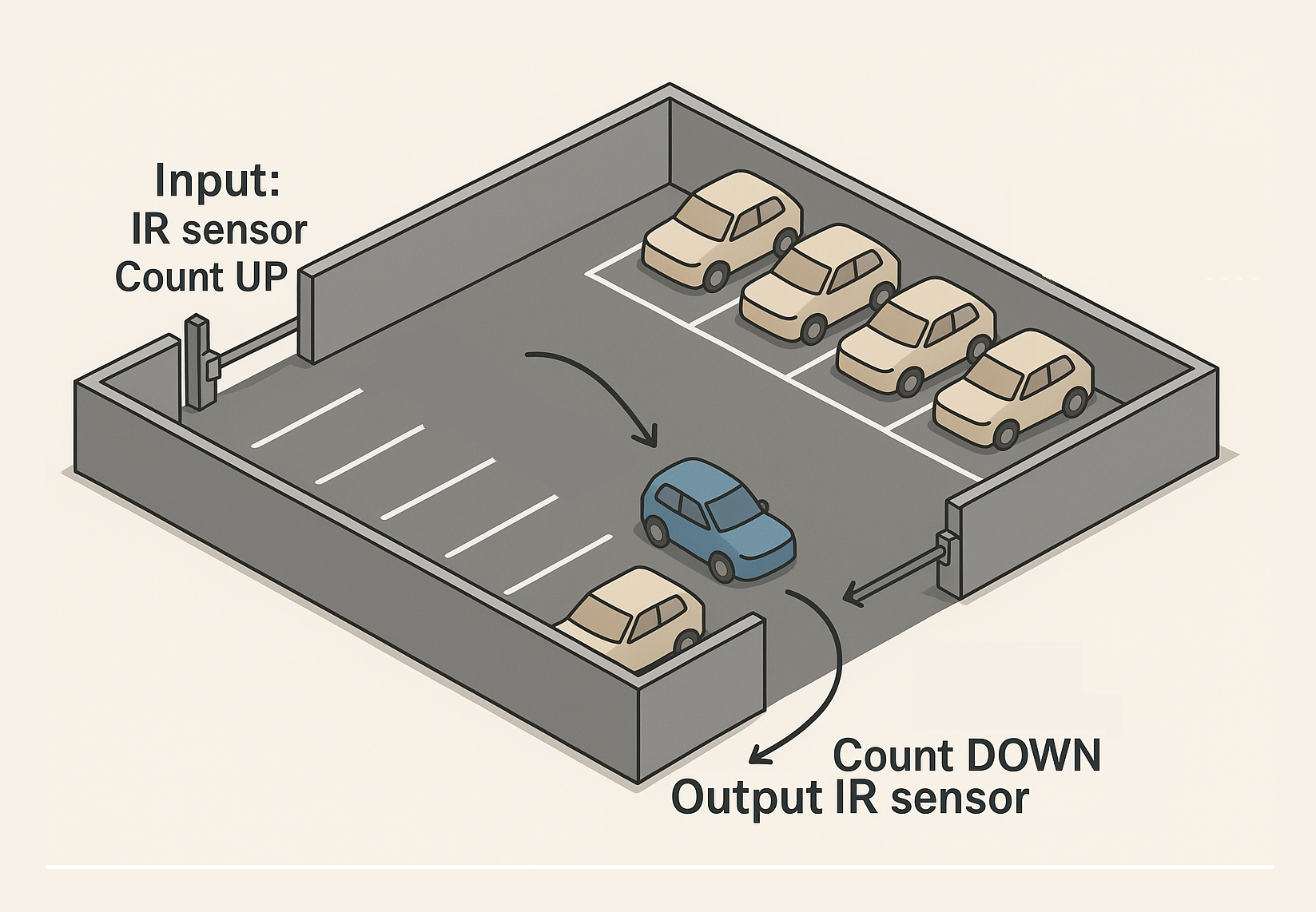

System-level project architecture for the IR sensor control solution.
Solution set

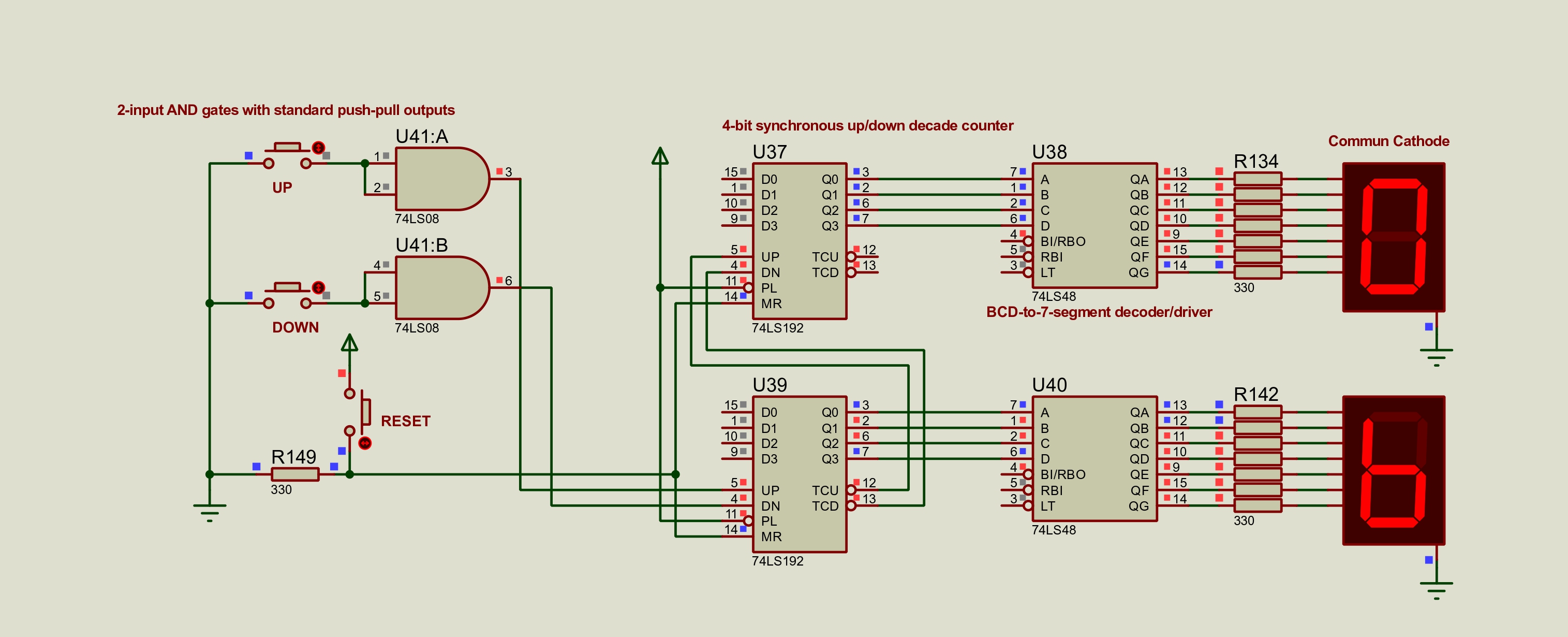

Stage 2 V2
Stage 2 circuit export with matching Proteus project and PDF.
Solution set

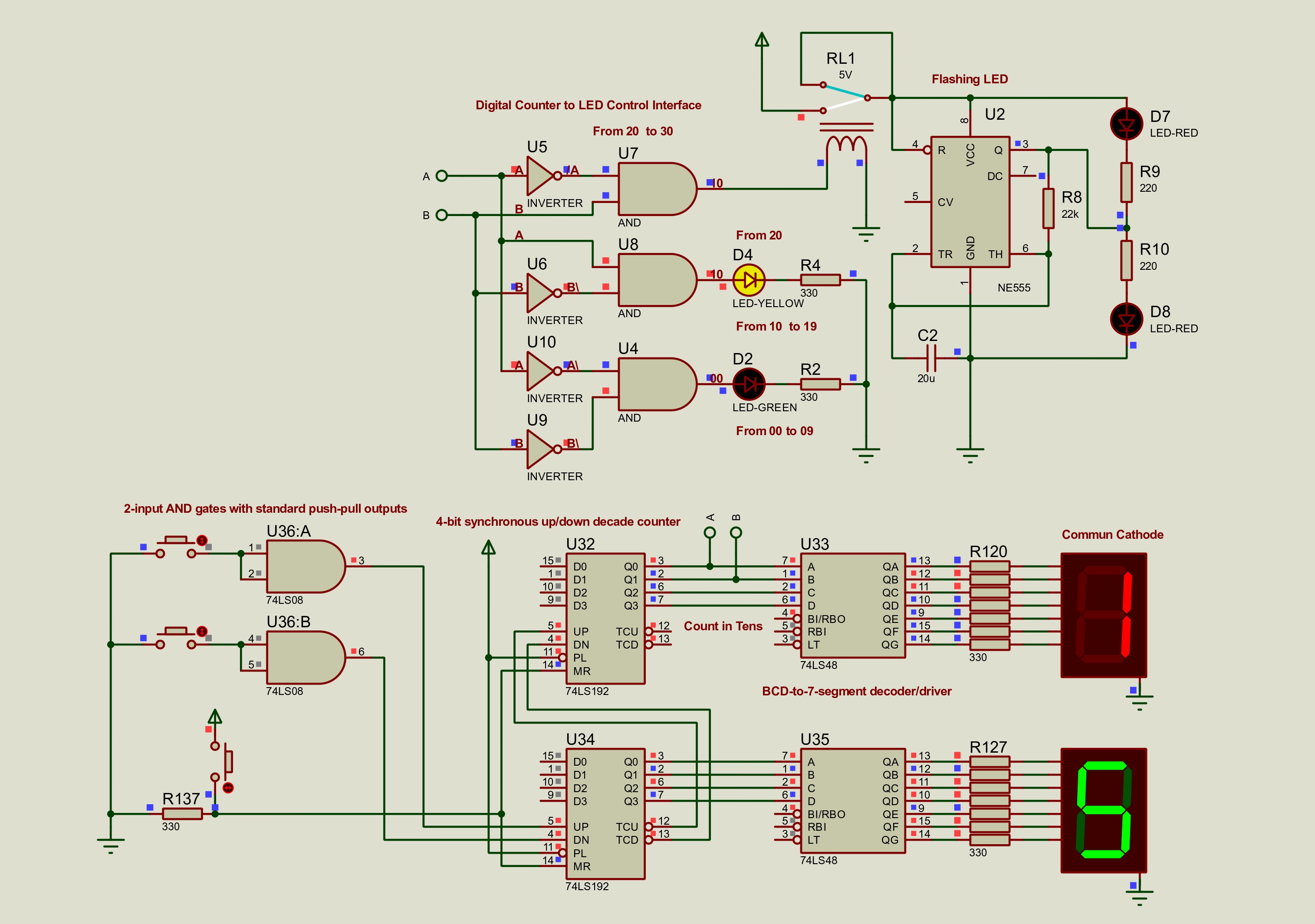

Question 8
Question 8 exported circuit, PDF solution, and Proteus project source.
Solution set

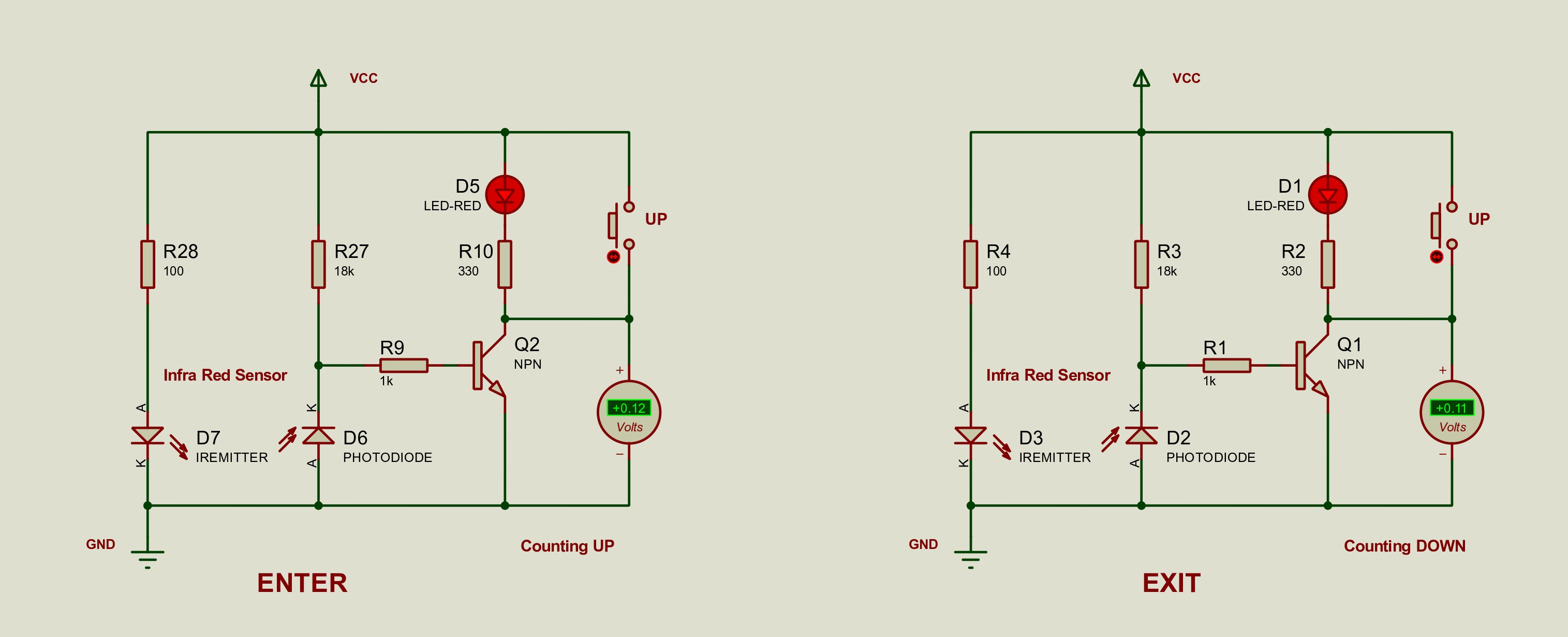

Dual IR stage
Two-IR sensor circuit export with its solution PDF and Proteus source file.
Reference image

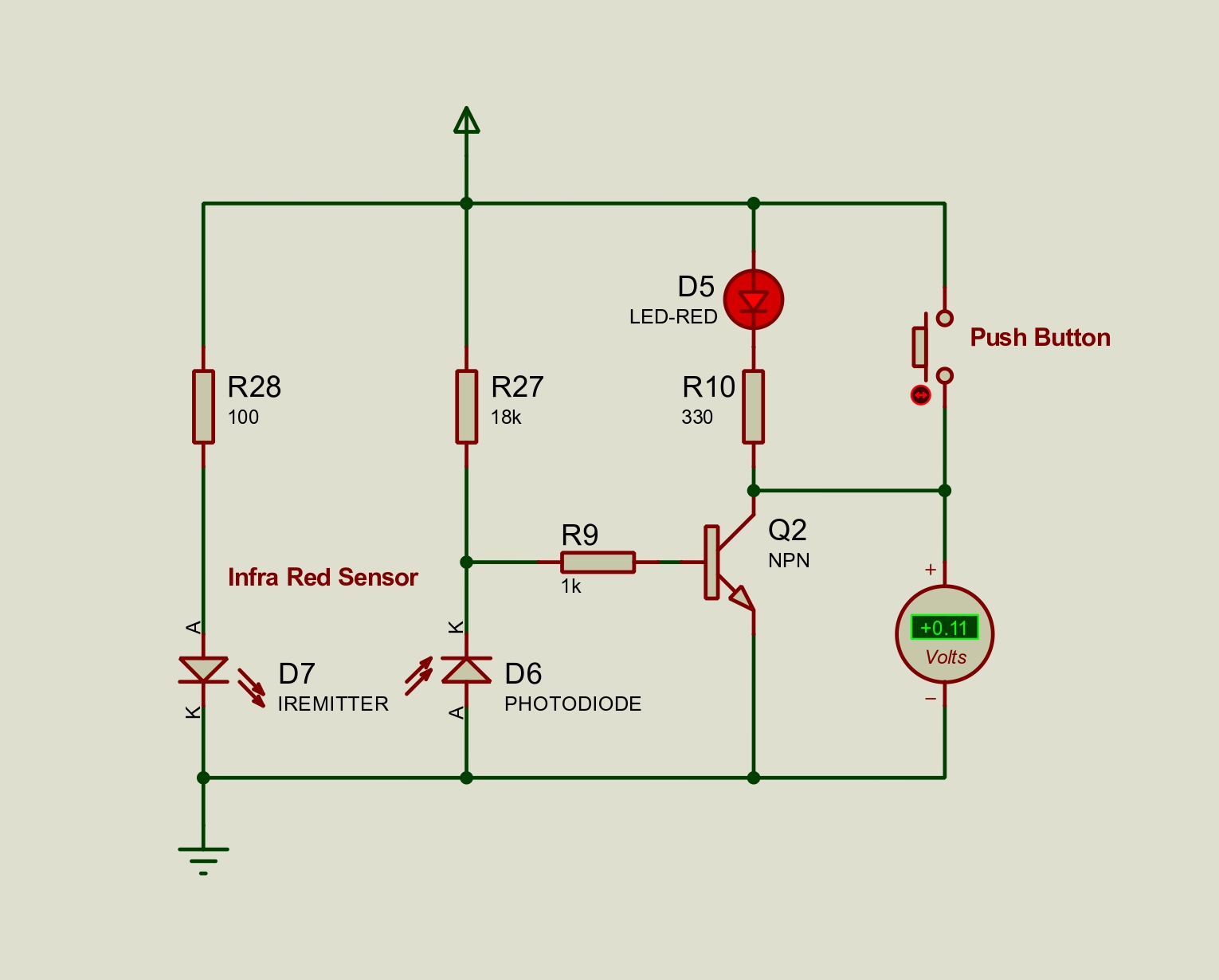

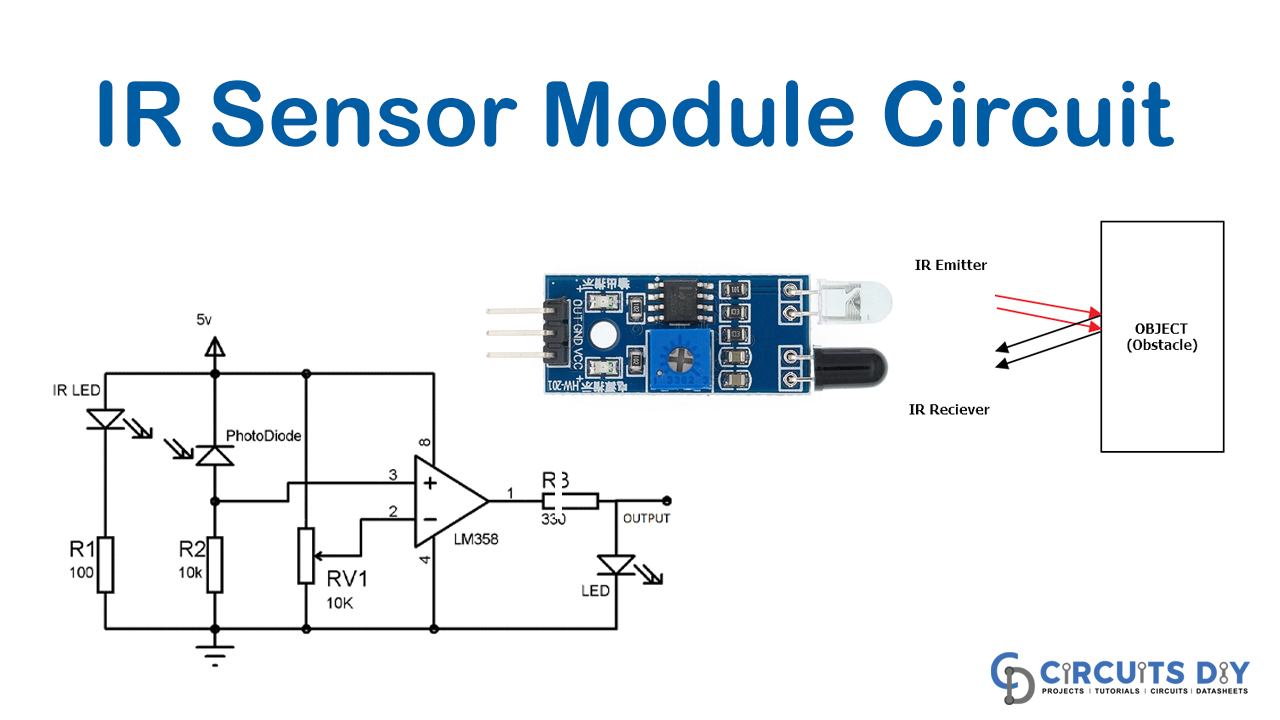

IR sensor module circuit
Reference image for the IR sensor module used in the project context.
Reference image
IR sensors reference
Supporting IR sensor visual reference from the project folder.
.jpg){kind=link}
Proteus setup
Open the simulations in Proteus 8.
Extract the installer, run setup, apply the supplied license, then validate each stage independently before integrating the full design.
1. Download Proteus 8 Professional.
2. Open the relevant PDS project file.
3. Keep detector, counter, and status stages separate during validation.
4. Avoid Check for Updates because this installation is version-locked.
